EnviroPad® Rail

Building on the innovations introduced with EnviroPad 5.0, EnviroPad Rail represents a new benchmark in hydrocarbon containment solutions for rail environments. Engineered through close collaboration with industry experts, this cutting-edge product offers a durable, effective and intelligent approach to managing the unique hydrocarbon leakage risks encountered on tracks and rail sites.

  • Modular, interlinking design
  • Effortless replacement and maintenance
  • Permanent hydrocarbon retention
  • Rail-specific design
  • Resilient and washable construction
  • Leakproof hanging and storage
  • High hydrocarbon absorption capacity (31 litres per module)
  • Hydrophobic (repels water)
  • Durable under heavy load
  • Polymer stability

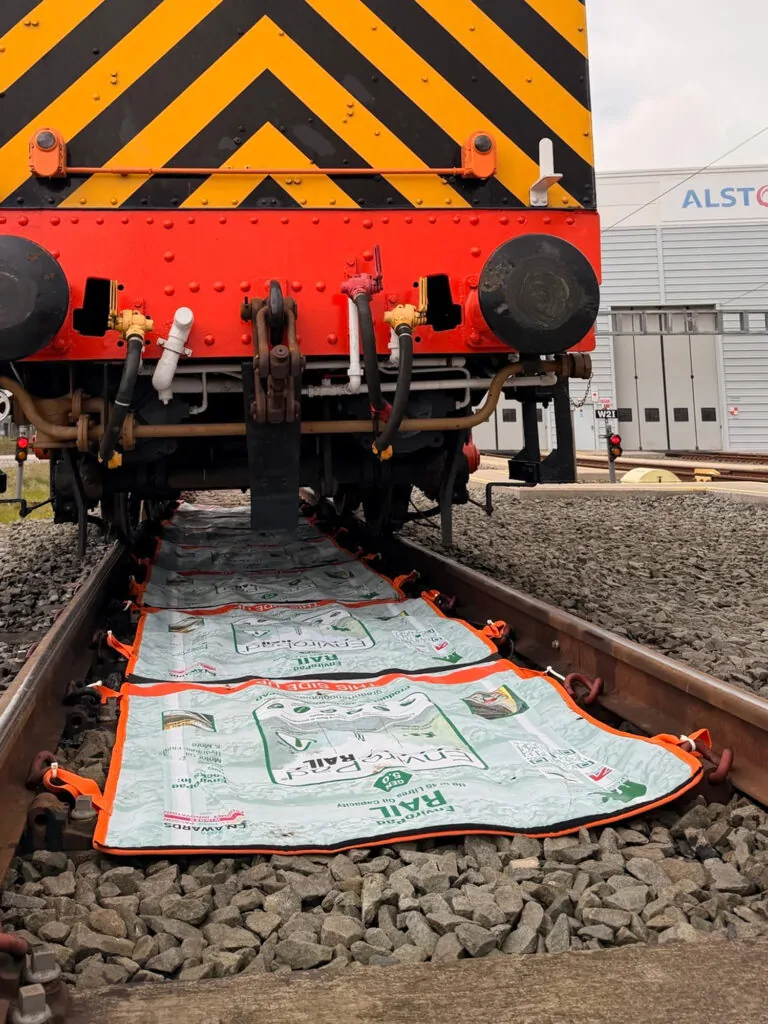

  • Secure track attachment

Find A Stockist

Specification

CODE PRODUCT SIZE CAPACITY

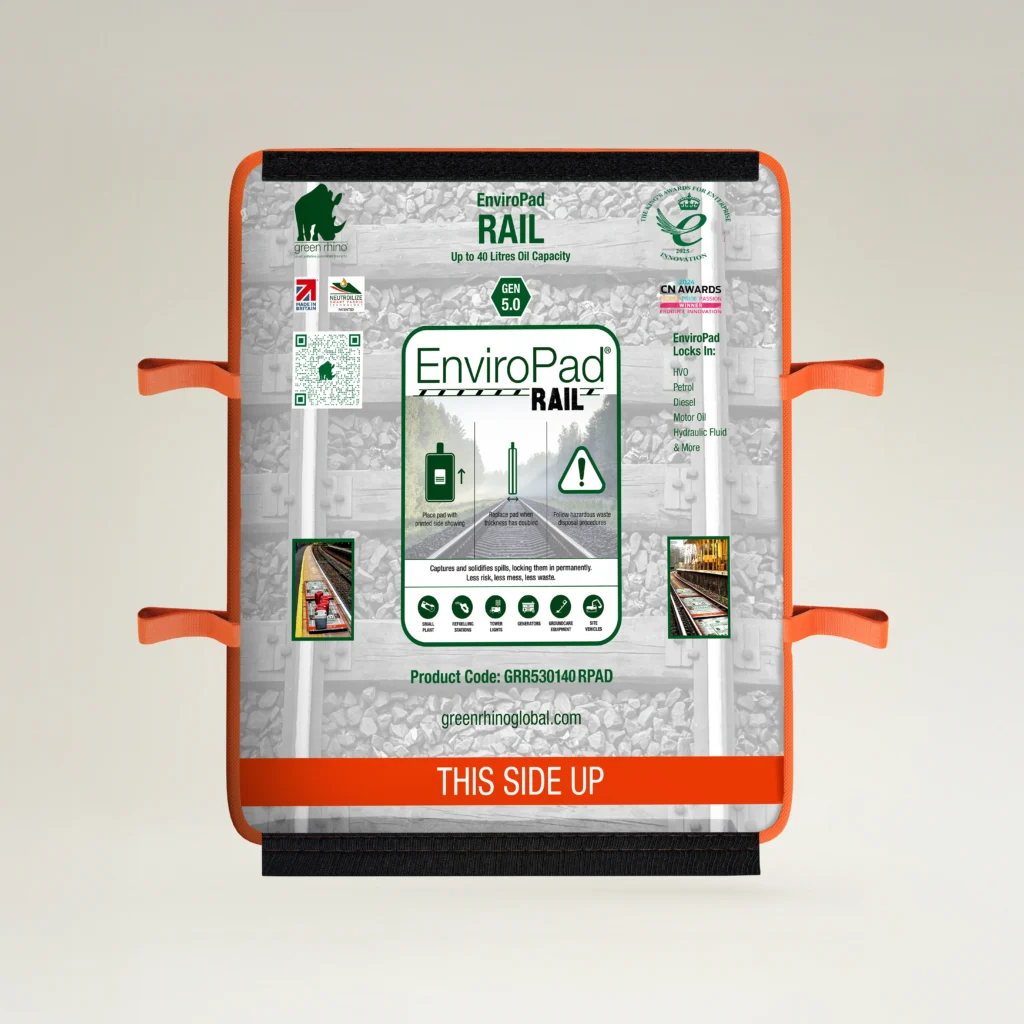

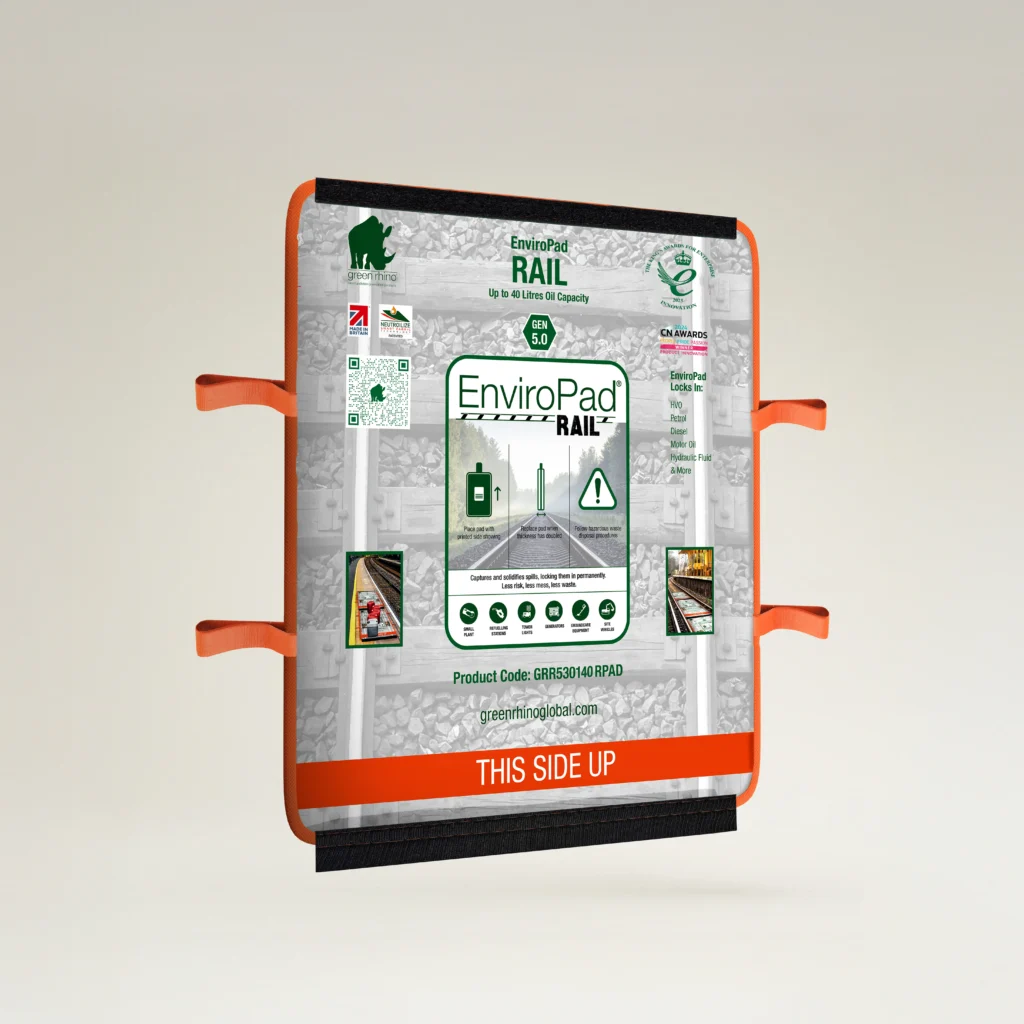

GRR 53 01 31 RPAD EnviroPad Rail L31 – Large 1370 x 910 mm Up to 31L oil



Product Overview

What are spill pads used for?

Oil spill mats like EnviroPad are used to capture incidental drips and spills. For example, oil leaks and refuelling spills when using motor-driven equipment like disc cutters, generators, pumps, tower lights and fuel bowsers. They are a legal requirement under pollution prevention legislation. Failure to implement effective spill control measures can lead to fines, site closures and even prosecution.

EnviroPad, like all spill pads and spill trays, is designed to contain small, incidental spills. If there is a risk of a larger spill, e.g. a punctured drum or IBC, you should be using secondary containment with an adequate bund capacity.

How does EnviroPad work?

EnviroPad employs smart polymers which attract hydrocarbons and turn them into a non-leaching solid. The smart polymers do not react with or retain water. The high-quality mesh fabric on top of the EnviroPad wicks hydrocarbons across the surface to areas of unused polymer. This ensures that you get the most out of every EnviroPad before it needs replacing. EnviroPad sheds rainwater without flushing out any of the solidified hydrocarbons. Saturated EnviroPads can be safely hung up to drain. No sidewalls or liner are required.

What makes EnviroPad better than other spill mats, trays and nappies?

Almost all ‘absorbent’ spill control products are made with polypropylene which is a sponge. Great at absorbing liquids; not so good at holding onto them. Hang these products up, carry them across site, put heavy equipment on them, and the absorbed hydrocarbons will drain or squeeze out onto the ground. That’s not what we call pollution prevention.

EnviroPad is unique in that it locks hydrocarbon spills inside the pad permanently. It does this by turning oils and fuels into solid rubber. So when we make claims about the capacity of EnviroPad, you can believe it.

Rainwater can collect in spill trays which will mix with the captured hydrocarbons to create a volume of contaminated water. One of two things happens next. In most cases, the products are left to overflow or site workers tip the contents onto the ground. So you are not preventing pollution, you are just delaying it. If this happens on your site, you are wasting your money.

What should happen is that you dispose of this waste water responsibly by transferring it to a hazardous waste bin for collection by a third party waste contractor. This rarely happens because of the impracticality of moving a flooded spill tray or nappy without spilling the contents on the ground. But if you did, then you are paying to dispose of litres of contaminated water every time it rains. If this happens on your site, you are wasting your money.

With EnviroPad there is no waste water, no negligent behaviour, just no-nonsense pollution prevention. That’s why the UK’s leading construction companies consider it best practice.

What makes EnviroPad so effective?

Green Rhino pioneered the use of smart polymers for spill control. We’ve tried countless methods of manufacture and countless blends of smart polymers. Our patent-pending Neutroilize™ Smart Fabric Technology is the only method that retains hydrocarbons permanently and is unique to EnviroPad.

Which hydrocarbons does EnviroPad work with?

Our proprietary blend of smart polymers will work with a wide range of workplace hydrocarbons including motor oil, petrol, diesel, hydrotreated vegetable oil (HVO) and hydraulic fluids (including bio). Capacity of each type of fluid varies. Our ‘up to’ capacities refer to diesel and HVO.

How else does EnviroPad save you money?

There are five sizes of EnviroPad compared to the three sizes common to nappy-style products. This means that you can find a size to fit most items of equipment – and you are less likely to have to pay for items larger than you need. This alone can save you £££s over the length of a project.

Site workers prefer EnviroPad

EnviroPad doesn’t fill with oily, muddy water which makes it cleaner and easier to handle. When carried or stored vertically, hydrocarbons won’t drain out onto workers clothing, onto the storeroom floor or into the back of a van.

FAQs

Why doesn’t the EnviroPad spill pad need side walls?

When hydrocarbons leak or spill onto an EnviroPad, they are quickly absorbed inside the pad and solidified. Rainfall will not flush the solidified contaminants out. You can even jet wash an EnviroPad clean.

What happens if I spill a large volume of oil or fuel onto an EnviroPad?

EnviroPad is designed to capture small leaks and spills in low-risk scenarios. Neither EnviroPad nor spill trays of any type are designed to contain catastrophic leaks or spills. If there is a significant risk of this – for example, a pierced oil drum – then you should be using a bunded area with at least 110% capacity of the risk.

How long will an EnviroPad last?

EnviroPad will last until it has absorbed its capacity in hydrocarbons which could take years. In the field, you are unlikely to know how much has been absorbed. However, when the smart polymer inside reacts with hydrocarbons it swells to around twice its original thickness. When an EnviroPad has thickened all over, it is time to replace it. In practice, customers tend to know when to replace them.

Spill control products can get very muddy when used on construction sites and this can impede their ability to capture spills. The great thing about EnviroPad is that it can be hosed or jet washed clean without risk of leakage. If you jet wash a spill tray or nappy-style product, you will just flush contaminants into the environment.

EnviroPad is also extremely rugged which makes it popular for refuelling areas. It can withstand being driven over regularly – even by tracked vehicles like excavators.

How should used EnviroPads be disposed of?

EnviroPad has no special COSHH requirements and can be disposed of in your normal hazardous waste bins.

In the US, EnviroPad has passed leachate testing so may be considered as non-hazardous waste. Check with local, state and national regulations.

With spill trays and nappy-style products you are capturing, storing and disposing of liquid hydrocarbons which are highly flammable. EnviroPad converts hydrocarbons into a non-leaching solid which has significantly lower flammability and off-gassing properties.

Are all smart polymer spill pads the same?

EnviroPad’s patent-pending Neutroilize™ Smart Fabric Technology is unique and the result of many years of product development. We’ve tried the other methods of using smart polymers to bind hydrocarbons permanently – like stitch bonding – and they just aren’t reliable. If you come across another smart polymer spill pad then the likelihood is that you’ll be advised to place it inside another container. That will tell you that it leaks.

Why do spill containment mats and spill trays made with absorbents leak?

Many spill containment products are made with an absorbent medium such as polypropylene or recycled fibres. These are good at absorbing hydrocarbons but not so good at holding onto them. When saturated, when hung up or moved, or when pressure is applied, the absorbed contaminants can drain or squeeze out. Only EnviroPad locks in oil and fuels permanently.

EnviroPad XL used with fuel bowser

“The flaws in the Plant Nappy were overcome by the EnviroPad”

Balfour Beatty Sustainability Case Studies 2018
