DrainEezy® Bund Filter 4″ Manifold

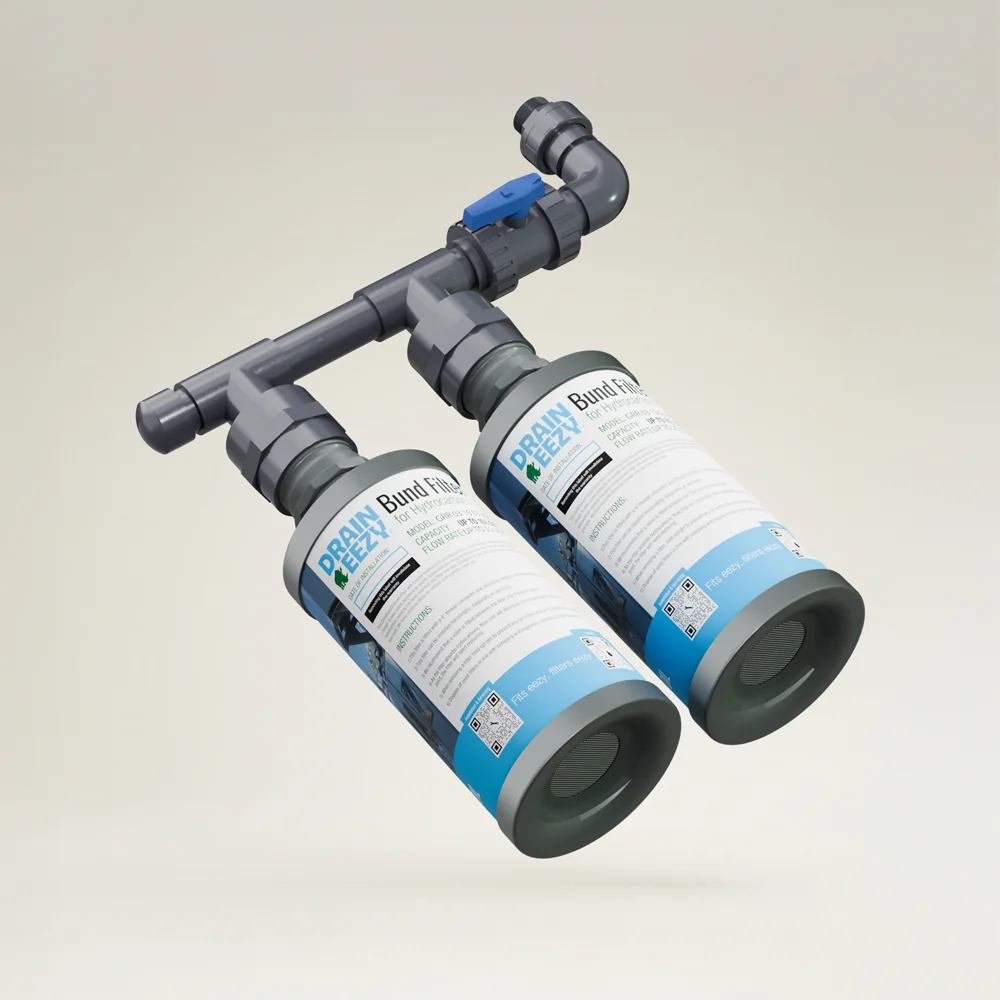

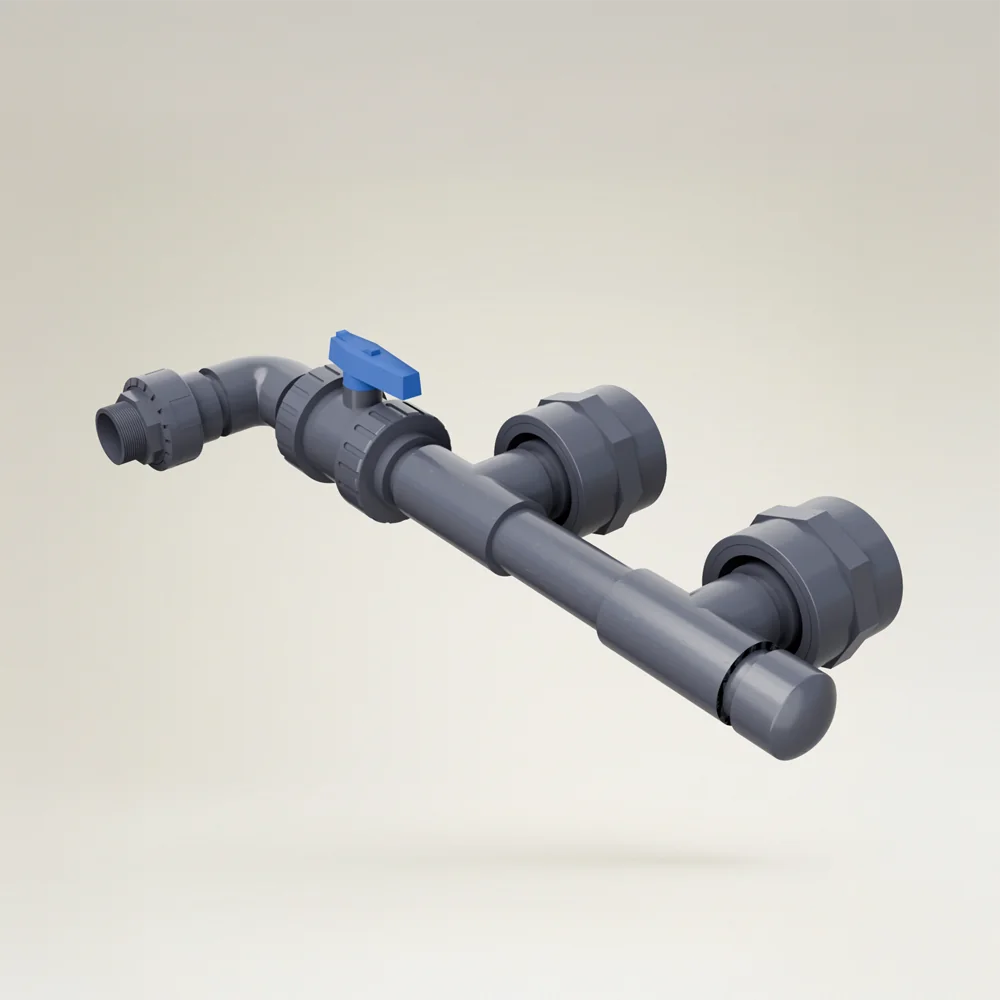

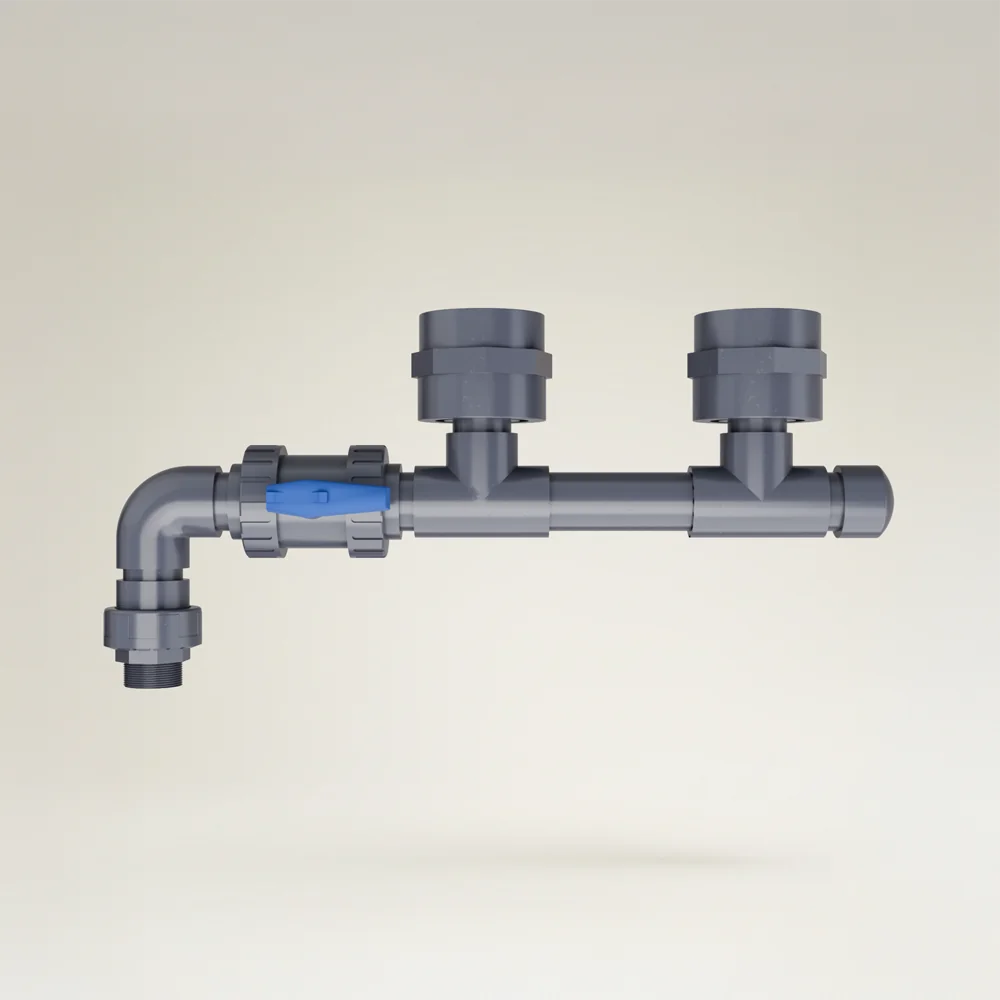

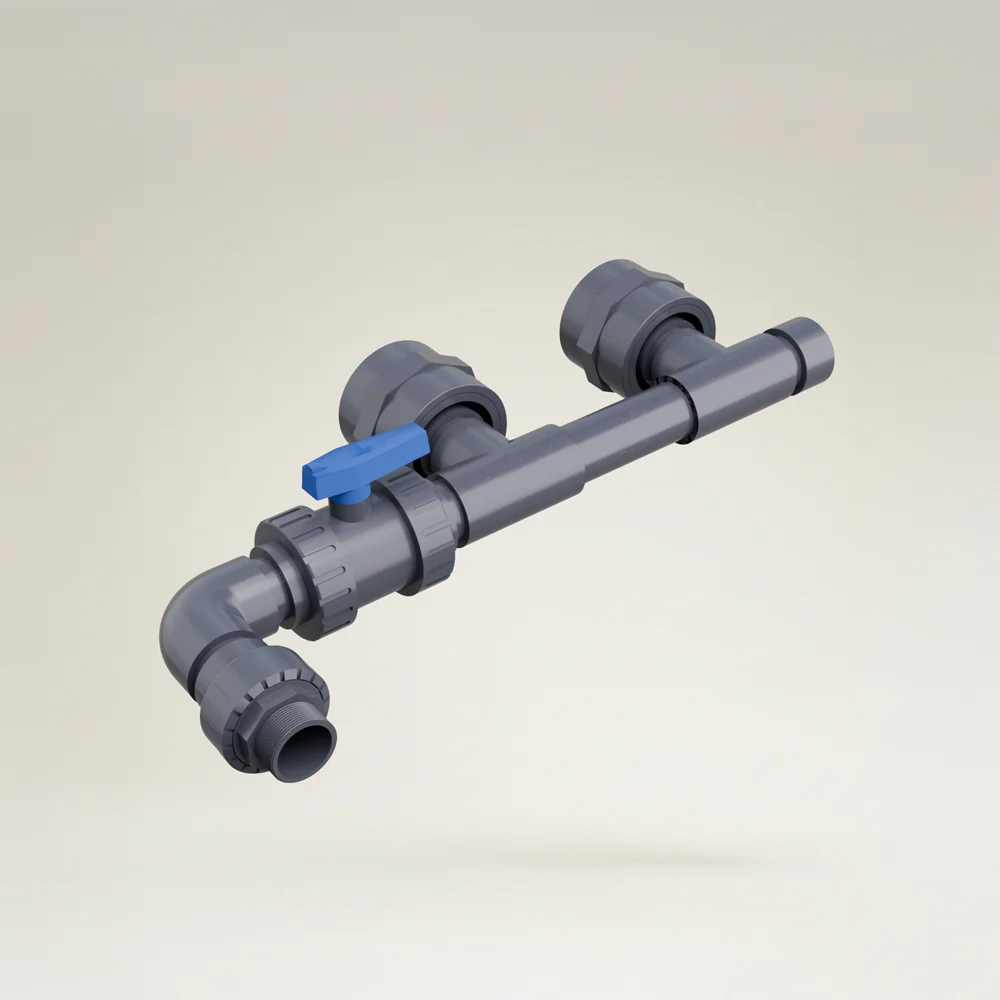

The DrainEezy Bund Filter Manifold is purpose-built for sites running multiple M4 DrainEezy Bund Filters. The Manifold enables to you to deliver high volume drainage and filtration through a single outlet. For new bunds and retrofits, this is a relatively low-cost and easier-to-install alternative to oil/water separators. For existing installations, it enables you to scale up where flow rate requirements have increased, without significant reconfiguration or civils work.

Key Features

  • Multi-filter connection: Connects multiple M4 DrainEezy Bund Filters (4” fitting) into one unified system, delivering scalable flow rate.
  • Parallel flow operation for high flow filtration: Filters work simultaneously to dramatically increase overall flow and water treatment capacity
  • Integrated ball valve: Allows isolation of filters for maintenance
  • Removable end cap: Enables straightforward access for routine maintenance and sediment removal, keeping downtime to a minimum
  • ABS construction: Impact-resistant, lightweight, and corrosion-resistant material with a smooth, snag-free surface that performs reliably in low temperatures

Find A Stockist

Specification

CODE DESCRIPTION FITTING DIMENSION
GRR 03 60 00 MSYS Bund Filter 4″ Manifold – 2 Gang 4″ fitting, compatible with M4 DrainEezy Bund Filter W791 x L312.3 x D mm



FAQs

What is the DrainEezy Bund Filter Manifold used for?

The DrainEezy Bund Filter Manifold is used to connect multiple Green Rhino M4 DrainEezy Bund Filters into a single system. It is designed for bund drainage applications where a single M14 filter with 4” fitting cannot handle the required flow rate. By running filters in parallel, it increases overall water treatment capacity without requiring a larger individual filter unit.

How does the Bund Filter Manifold improve flow rate?

Rather than relying on a single M4 DrainEezy Bund Filter which has an inherent flow rate limitation, the manifold enables multiple bund filters to operate simultaneously in parallel. This multiplies the effective flow capacity of the system proportionally to the number of filters connected.

Is the DrainEezy Bund Filter Manifold easy to maintain?

Yes. The manifold features an integrated ball valve that allows individual filters to be isolated during maintenance without interrupting the entire system. A removable end cap provides direct access for cleaning and sediment removal.

What material is the Bund Filter Manifold made from?

It is manufactured from ABS (Acrylonitrile Butadiene Styrene), a robust engineering plastic that is impact-resistant, corrosion-resistant, lightweight, and performs well in low temperatures. Its smooth surface prevents snagging during installation and maintenance.

What Green Rhino filters are compatible with the Bund Filter Manifold?

The manifold is designed specifically for use with the Green Rhino M4 DrainEezy Bund Filter range.
